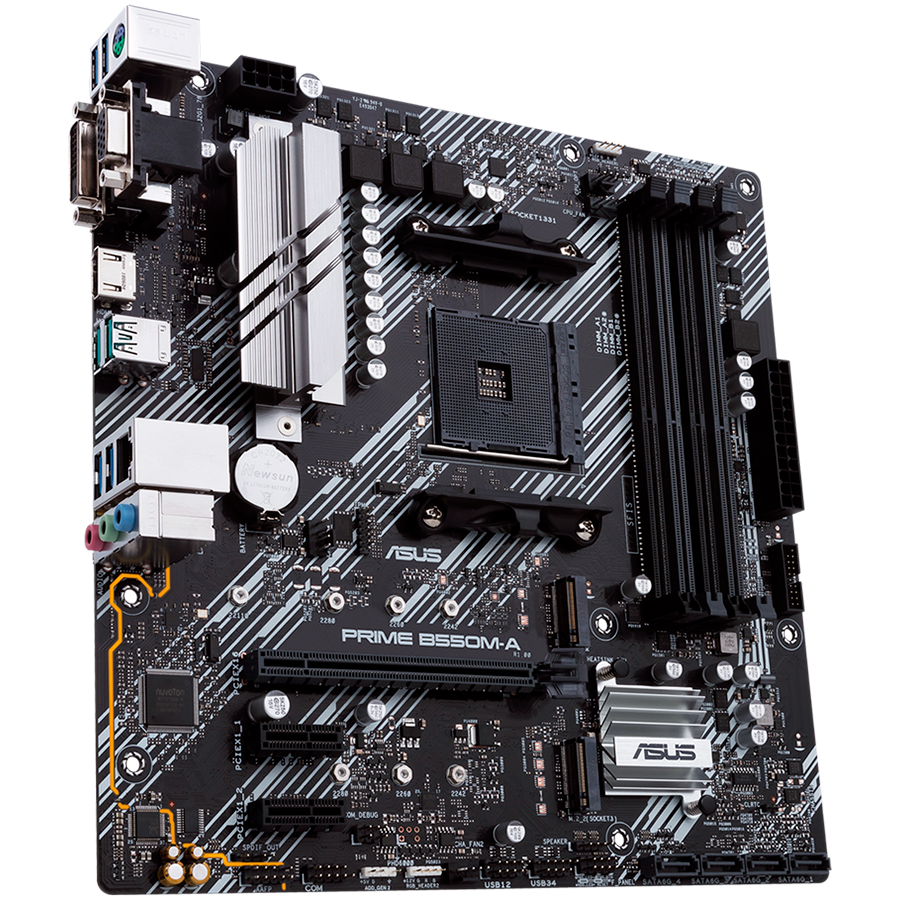

• ASUS PRIME B550M-A mATX AM4 DDR4
1 1

ASUS PRIME B550M-A mATX AM4 DDR4

ASUS PRIME B550M-A mATX AM4 DDR4

Made by ASUS  · Model 90MB14I0-M0EAY0

Available by request
Dhs. 1,018.64 AED
Dhs. 1,018.64 AED
Sold out
Taxes included. Shipping calculated at checkout.

Currently unavailable, ask us about restock or lead time.

Inquire now

Purchase assurance

Chipset AMD B550 Supports Central Processor Unit AMD Ryzen Series 3rd Generation CPU Socket Standard Socket AM4 CPU Maximum Quantity Supports 1 Memory Type DDR4 SDRAM Memory Form Factor DIMM...

Specifications & features
Chipset AMD B550
Supports Central Processor Unit AMD Ryzen Series 3rd Generation
CPU Socket Standard Socket AM4
CPU Maximum Quantity Supports 1
Memory Type DDR4 SDRAM
Memory Form Factor DIMM 288-pin
Memory Speed 2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
Maximum Installable System Memory Storage Capacity 128 GB
Memory Slot Total Quantity 4
Provides Error Checking Method ECC
Memory Features Two DDR Channels
Unbuffered
Integrated Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Storage Controller:
PCIe 4.0 x4/SATA (1 x M.2 (Key M))
Audio Integrated yes
Device Location Integrated
Audio Chipset Realtek ALC887
Audio Data Width 24-bit
Audio Output Mode 7.1 Channel Surround
Compliant Audio Standards High Definition Audio
LAN Integrated yes
LAN Chipset Realtek RTL8111H
Data Link Protocol Supports Gigabit Ethernet/Fast Ethernet/Ethernet
PCI Express 4.0 x16 1
PCI Express 3.0 x1 2
PS/2 1
DVI 1 (DVI-D)
VGA 1 (15-pin D-sub)
HDMI 1 (HDMI (Type A))
LAN 1 (RJ-45)
USB 3.2 Gen 2 2 (USB 3.2 (type A))
USB 3.2 Gen 1 4 (USB 3.2 (type A))
Audio Interface 3 (3.5-mm minijack)
BIOS Type AMI
BIOS Features ASUS CrashFree BIOS 3
UEFI
ASUS EZ Flash 3
256 Mb Flash ROM
Power Connectors Type 24+8 pin
Mainboard Features Aura Sync RGB LED
Cable Included 2 x SATA Data Cables
Included Accessories I/O Shield
User Guide
Quick Start Guide
Screws
CD User Manual
Form Factor Micro ATX
Height (mm) 244 mm
Width (mm) 244 mm
Warranty Products Returnable Yes
Warranty Term (month) 36 month(s)
Warranty Validation Criteria Serial Number
Pack Length (mm) 270 mm
Pack Width (mm) 270 mm
Pack Height (mm) 52 mm
Pack Weight Brutto (kg) 1.04 kg
Pack Weight Netto (kg) 0.616 kg
Pieces in pack 1
Box Weight Brutto (kg) 10.39 kg
Retail Packaging Net Weight Carton 0.01 kg
Retail Packaging Net Weight Plastic 0.01 kg
Packs in Box 10
Package Type Retail
EAN Code 4718017755528

Warranty

Coverage subject to the brand's terms.

What's in the box

Ships in genuine, factory-sealed manufacturer packaging. For the full contents list, refer to the official product packaging or the manufacturer's listing for this exact model.
